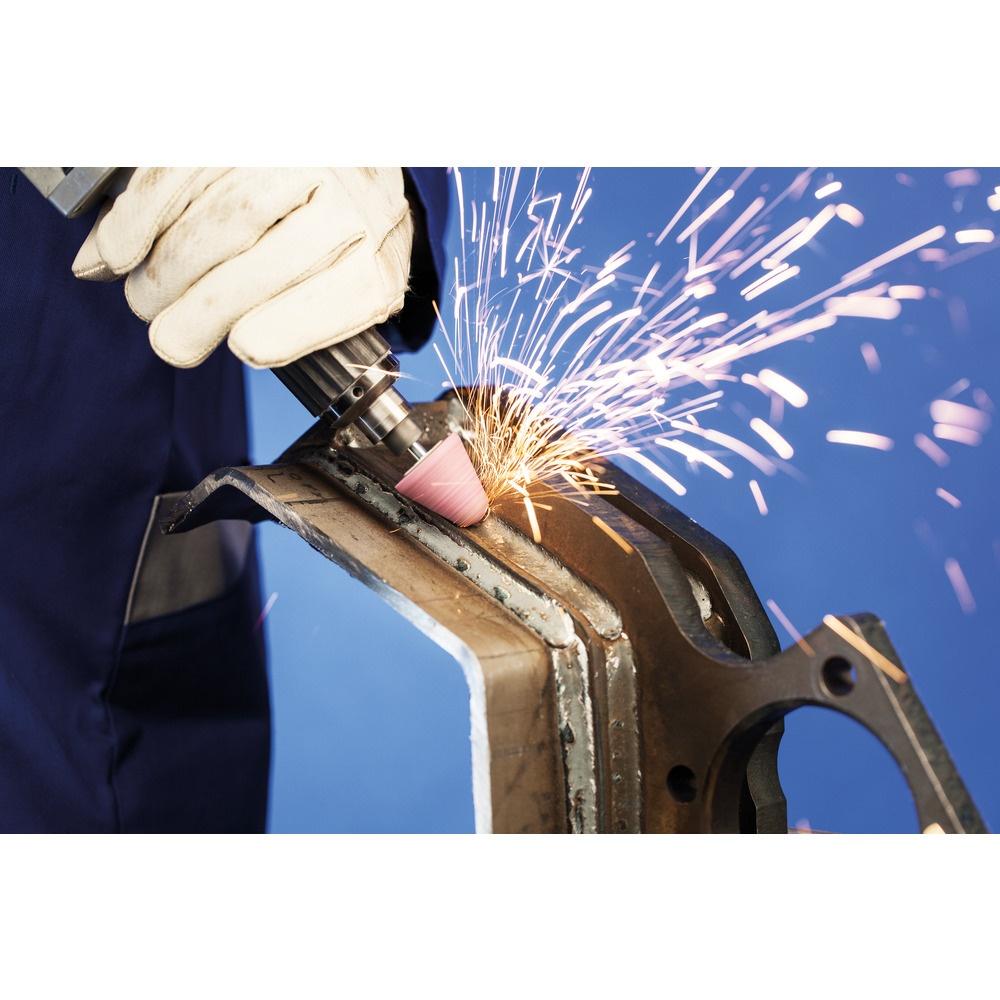

The STEEL type is the most universal bond for machining steel and cast steel. It is ideal for grinding high-speed steel (HSS) molded parts and weld dressing on steel constructions. Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. Applications include grinding out slits and grooves in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Details
Industrial Subcategory:
Polishing, Finishing and Conditioning
Applications 7:
Working on edges (chamfering, rounding)
MANUFACTURER_TYPE_DESCR:
A 4 6,3 ADW 30 M 5V STEEL
Materials that can be worked:
Materials that can be worked 1:
Max. 1-2 Inch Overhang (RPM):
Optimum 1-2 Inch Overhang (RPM):
Recommendations for use:
STEEL mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
Safety notes:
The maximum permitted rotational speed relates to an unsupported shank length of 1/2".
Manufactured By:
Pferd Inc.
Other Details
Designed for work on surfaces and edges.
Good grinding performance and stock removal rate in universal use on steel workpieces.
High stock removal rate results in increased productivity.

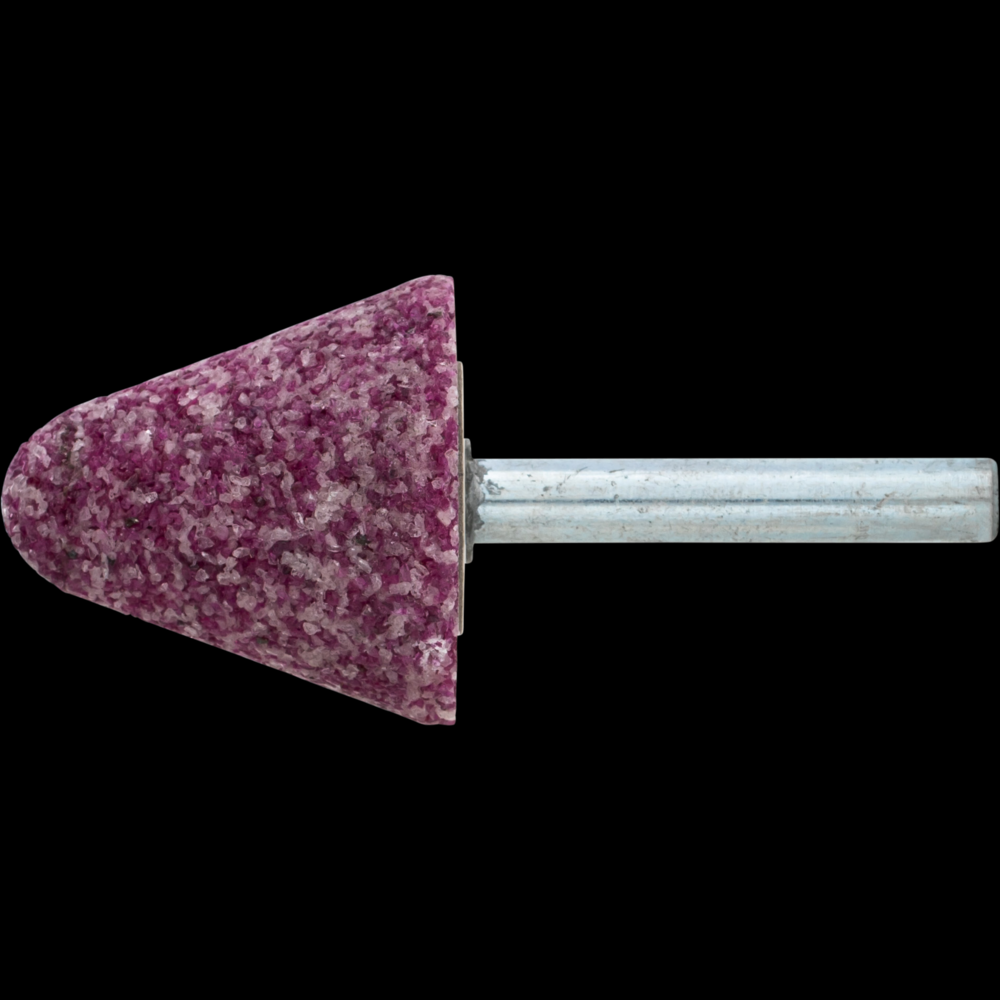

![PFERD Vitrified Mounted Point, STEEL, 1-1/4" x 1-1/4, 30 Grit, A4, AO, 1/4" Shank](/vendors/6924/large/39101692-rgb.png "PFERD Vitrified Mounted Point, STEEL, 1-1/4" x 1-1/4, 30 Grit, A4, AO, 1/4" Shank")
