The cylindrical shape is ideal for grinding bores, radii and contours. The CAST EDGE type is designed to work with high cutting speeds for edge grinding and grinding out sharp burrs, sand inclusions, and scale in grey and nodular cast iron. Its main applications include removal of sharp burrs and grinding out sand contamination and metal contamination on cast material parts.
Details
Industrial Subcategory:
Polishing, Finishing and Conditioning
Applications 7:
Working on edges (chamfering, rounding)
MANUFACTURER_TYPE_DESCR:
W 208 6,3 CU30 R5V CAST EDGE
Materials that can be worked:
Materials that can be worked 1:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Max. 1-2 Inch Overhang (RPM):
Optimum 1-2 Inch Overhang (RPM):
Recommendations for use:
CAST EDGE mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Manufactured By:
Pferd Inc.
Other Details
Cost-effective due to high edge stability, even on low-speed power tools.
Highly dimensionally stable due to the high bond content.

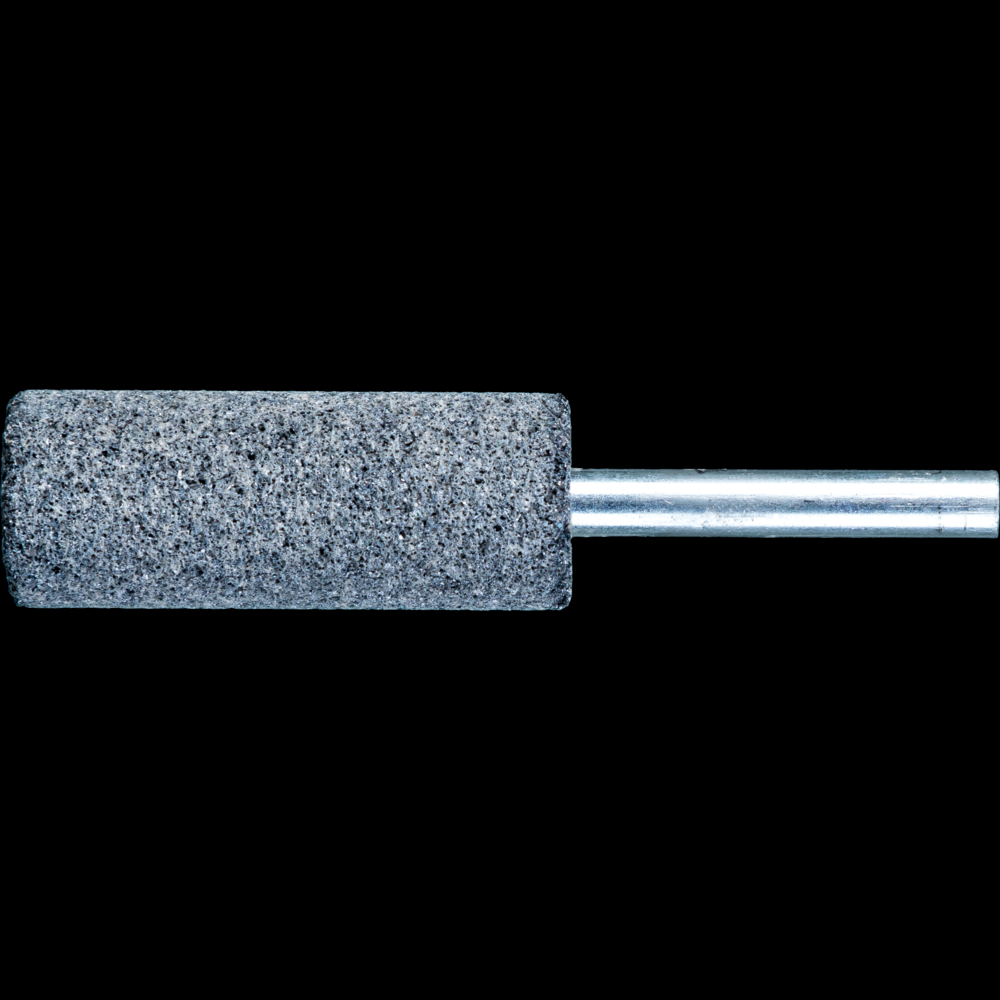

![PFERD Vitrified Mounted Point, CAST EDGE, 3/4" x 2, 30 Grit, W208, SiC, 1/4" Shank](/vendors/6924/large/35468303-rgb.png "PFERD Vitrified Mounted Point, CAST EDGE, 3/4" x 2, 30 Grit, W208, SiC, 1/4" Shank")
