Details
Industrial Subcategory:
Polishing, Finishing and Conditioning
Applications 1:
Step-by-step fine grinding
Applications 3:
Structuring (matt finishing, brush matting and satin finishing)
Materials that can be worked:
Materials that can be worked 1:
Materials that can be worked 2:
Materials that can be worked 3:
Materials that can be worked 4:
Materials that can be worked 5:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 6:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 7:
Steel materials with a hardness > 54 HRC
Materials that can be worked 8:
Steels up to 370 HV (< 38 HRC)
Pferdergonomics:
PFERDERGONOMICS recommends POLISTAR-TUBE to reduce vibration and noise produced during use and to improve comfort when working.
Recommendations for use:
For the best performance, use with a recommended peripheral speed of 3,000-4,000 SFPM.
Recommendations for use 1:
Select the POLISTAR diameter based on the respective pipe's inner diameter: Dia. 3-1/2" for inner pipe dia. 2-1/4" - 2-3/8
Recommendations for use 2:
Grit size 60 designed for roughness value 1.0-1.3 μm Ra.
Safety notes:
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
Manufactured By:
Pferd Inc.
Other Details
Achieves very fine surface quality grades of up to 8 μin (0.2 μm).
Conforms to contours due to high flexibility.
Stainless steel rivets prevent contamination of stainless steel (INOX) workpieces.

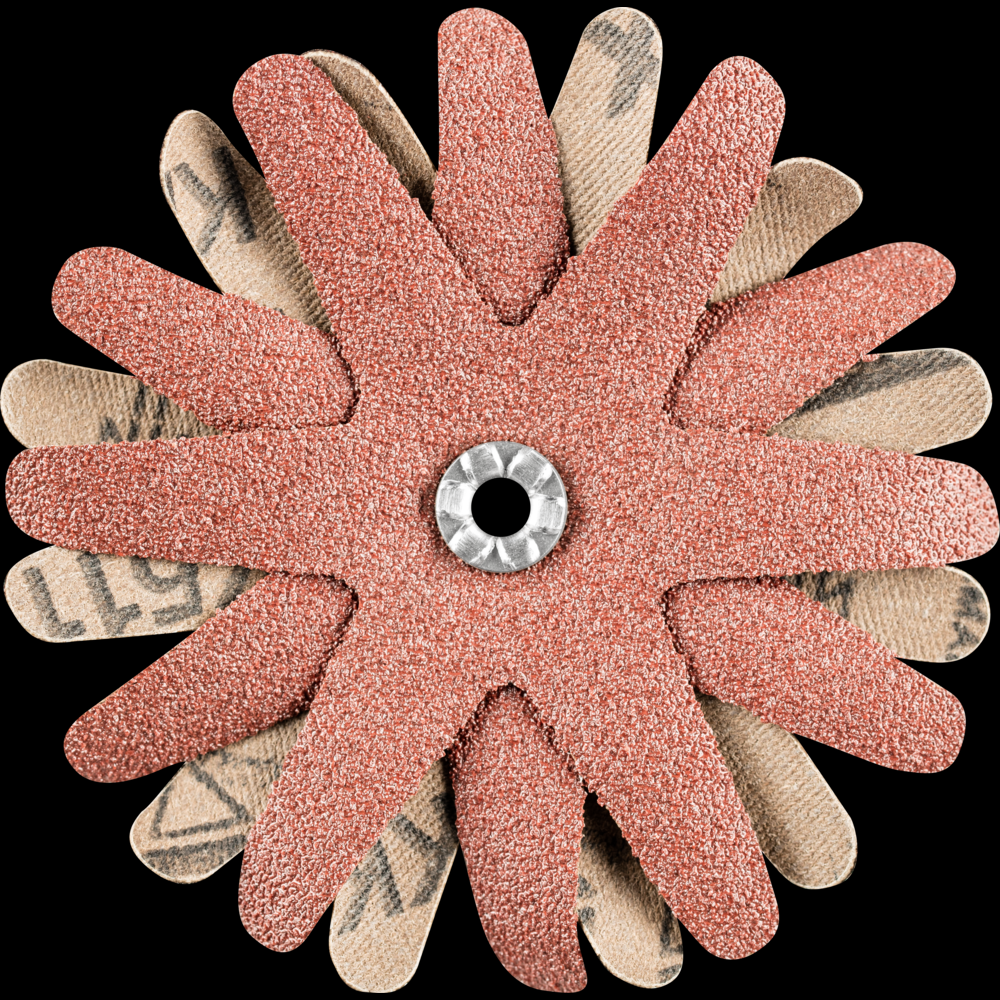

![PFERD POLISTAR-TUBE Abrasive Star, 3-1/2" dia,4 Layers,5mm Bore,60 Grit,Aluminum oxide](/vendors/6924/large/pst-t-90-5-4-a-60-rgb.png "PFERD POLISTAR-TUBE Abrasive Star, 3-1/2" dia,4 Layers,5mm Bore,60 Grit,Aluminum oxide")
