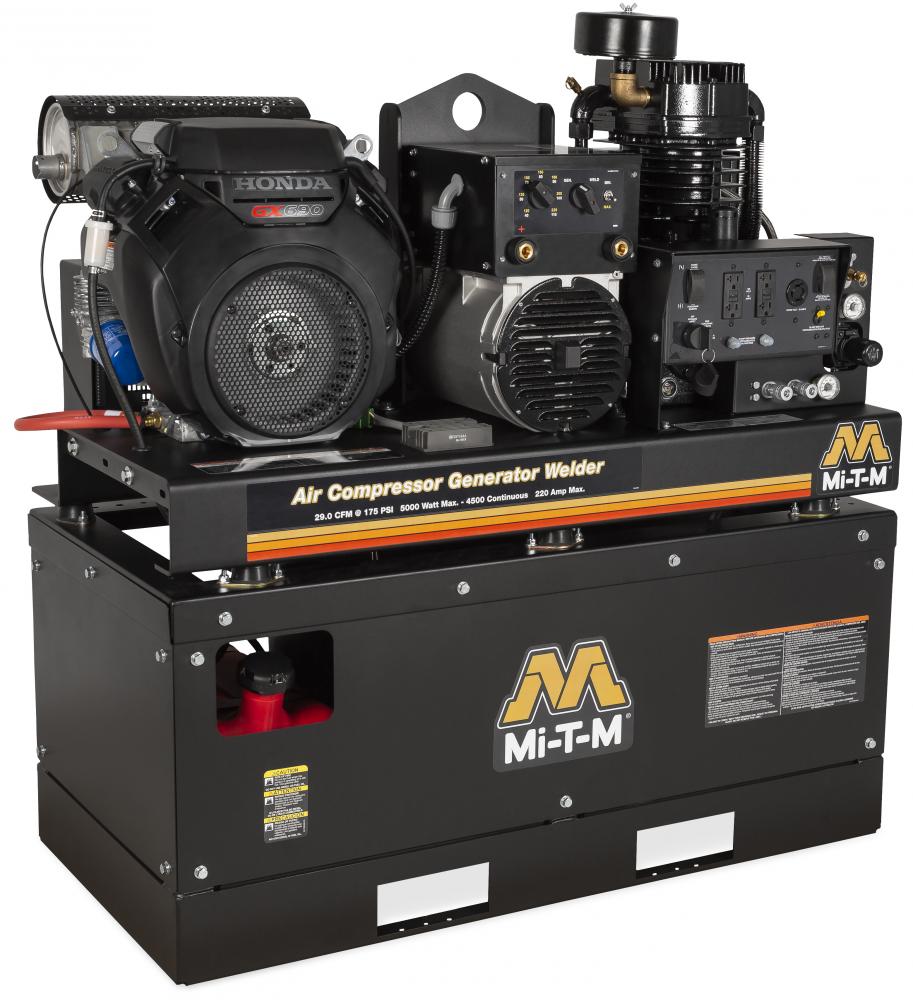

The AGW Series is designed for the contractor who needs air, power and welding capabilities. With Mi-T-M’s flexible installation, the AGW Series can be mounted on the back of a service truck, work trailer or in your shop to operate air tools, power lights or weld.
Details
Industrial Subcategory:
Air Compressors and Vacuum Pumps
Industrial Subtype:
Gas Air Compressor Combination Units
Displacement/Engine::
688cc Honda OHV with electric start (cables included, battery not included)
Duty Cycle (10 min. run time)::
220A @ 40%, 190A @ 60%, 150A @ 100%
Receptacles::
(2) 120V, 20A GFCI duplex, (1) 120V/240V, 20A twist lock
Specs:
29.0 CFM @ 175 PSI
Certification: ASME - UM
DC Voltage: 50-220A
Displacement/Engine: 688cc Honda OHV with electric start (cables included, battery not included)
Duty Cycle (10 min. run time): 220A @ 40%, 190A @ 60%, 150A @ 100%
Frequency/Voltage: 60Hz/120V/240V
Max. AC Output: 5000 watts
Rated Speed: 3600 RPM
Receptacles: (2) 120V, 20A GFCI duplex, (1) 120V/240V, 20A twist lock
Warranty: 2 Year Alternator
Warranty: 2 Year Pump Exchange
Warranty: 3 Year Honda Engine
Other Details
1/4-inch base plate to reduce vibration
10-gallon fuel tank capacity
16.5-inch flywheel for extra cooling and longer life
Brush-type 2 pole 120V/240V alternator
Electric start (battery and cables not included
Industrial Honda GX690 OHV engine
Large canister intake filter
Powder coated ASME coded 20-gallon receiver tank
Quality pilot valve unloader
Regulator and two gauges for tank and outlet pressure
Splash lubricated cast iron air compressor pump crankcase to extend the hours of performance
Total harmonic distortion (THD) less than 6%
