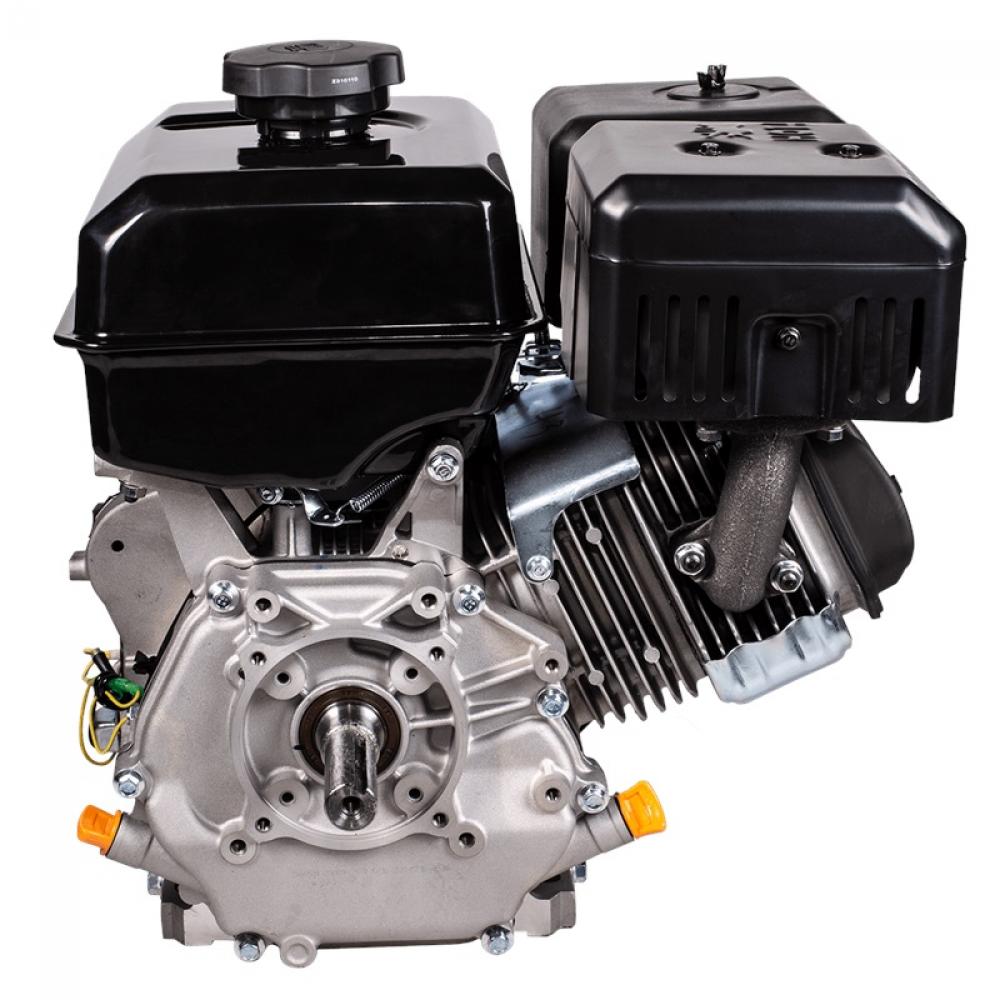

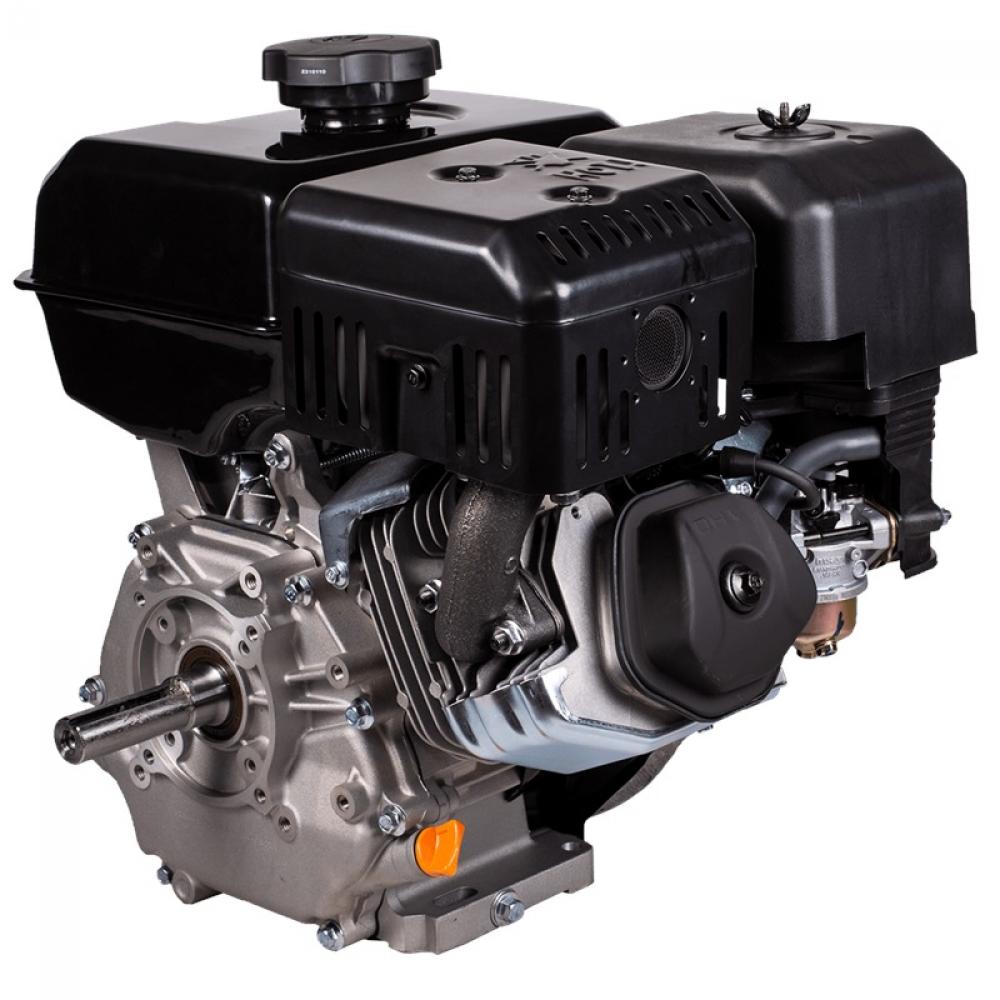

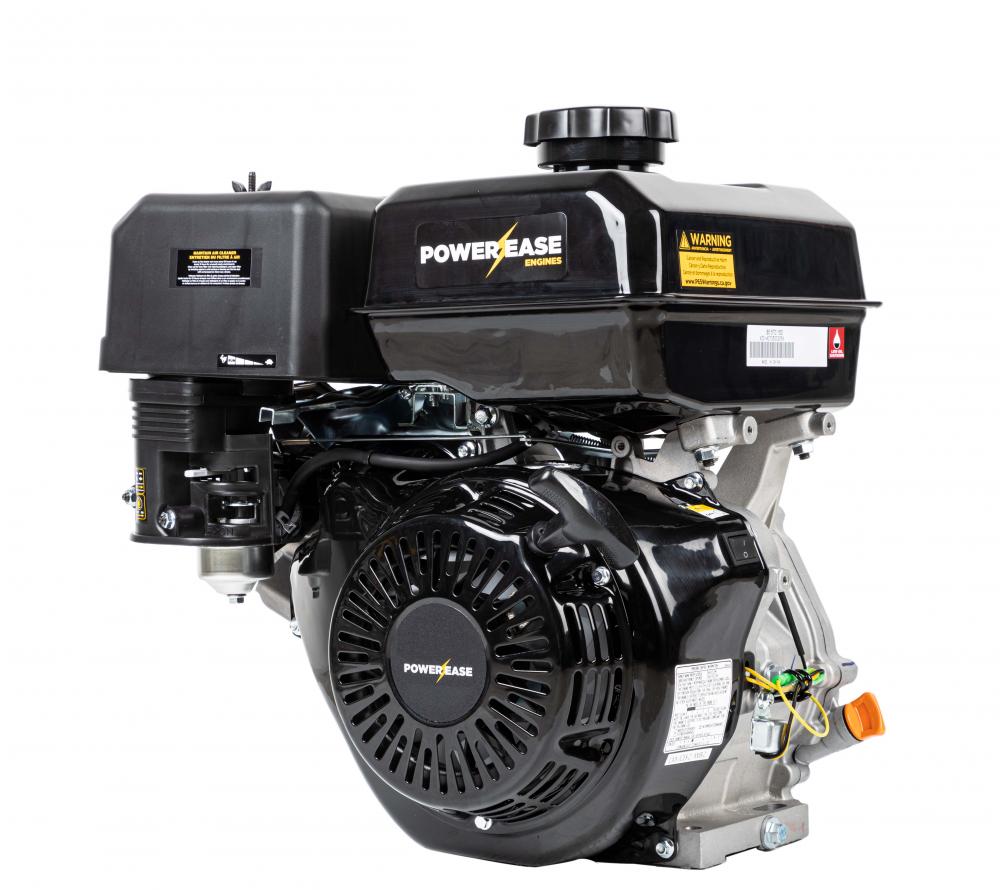

POWEREASE R420 ENGINE by BE Power Equipment

Part Number: 85.570.150
UPC: 00777897146370
Availability: Item is usually in stock, but we'll be in touch if there's a problem

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Info & Guides

User Manual

Powerease engines have been used by BE Power Equipment for well over ten years and have proved themselves to be powerful and reliable. Their reputation has earned the trust to be used on a wide range of power equipment.

Specifications

Details

Industrial Category:

Sports and Outdoor Equipment

Industrial Subcategory:

Pressure Washers and Accessories

Industrial Subtype:

Electric Pressure Washers

Gasoline Pressure Washer

Box L x W x H:

20" x 17" x 20"

Box WEIGHT:

77 lbs

Bullet 1:

Air-cooled 4-stroke OHV gasoline engine with 420cc displacement and low oil shutdown

Bullet 2:

Recoil start with a transistorized magneto ignition system

Bullet 3:

1" straight keyed shaft with counterclockwise rotation

Bullet 4:

Fuel tank capacity 6.7 L

COMPRESSION RATIO::

8.5:1

COOLING:

AIR COOLED

CYLINDERS:

SINGLE

DISPLACEMENT:

420CC

Engine ELECTRIC START:

RECOIL

ENGINE FUEL TANK CAPACITY::

6.0 L / 1.6 US GAL

Engine MODEL::

POWEREASE R420

Engine OIL TYPE::

SAE 10W30

Engine TYPE::

4-STROKE OHV

FUEL TYPE::

UNLEADED GASOLINE

Item Height (inches):

Item Length (inches):

16.5

Item Weight (lbs):

Item Width (inches):

LUBRICATION::

FORCED SPLASH

MAX ETHANOL::

10%

MIN OCTANE::

NET POWER::

13 HP @ 3,600 RPM

NET TORQUE::

29 N·M @ 2,500 RPM

OIL CAPACITY::

1.1 L / 1.16 US QTS

QR Code copy:

Scan the QR code with your mobile device and discover more about this engine.

SHAFT ROTATION::

COUNTER CLOCKWISE

SHAFT TYPE::

KEYED 1" HORIZONTAL

Spec 1:

Engine Type: 4 Stroke OHV

Spec 10:

Shaft Rotation: Counterclockwise

Spec 11:

Bore x Stroke: 88mm x 64mm

Spec 2:

Displacement: 420cc

Spec 3:

Starting System: Recoil

Spec 4:

Ignition System: Transistorized Magneto

Spec 5:

Compression Ratio: 8.2:1

Spec 6:

Fuel Tank Capacity: 6.7L

Spec 7:

Oil Capacity: 1.1L

Spec 8:

Shaft: 1" Straight Keyed

Spec 9:

Key Size: 1/4" x 2.2"

Unit L x W x H:

17.9" x 15.9" x 17.5"

Unit NET WEIGHT::

72 lbs

UPC::

777897146370

Warranty ENGINE BASIC:

2 Years

Warranty Engine Registered:

5 Years

Manufactured By:

BE Power Equipment

Other Details

Air cooled, 4-stroke, Over Head Valve (OHV) design enables higher compression ratio to obtain greater power output.

Common applications include: Pressure washers, water pumps, air compressors, lawn and garden equipment, tillers, and construction equipment.

Designed for field maintenance with easily accessible components like the air filter, spark plug, and carburetor.

Fuel recommended to use is regular unleaded that is 86 octane or more. It is best to use fuel with no ethanol, but ethanol blends of up to 10% are acceptable.

Replacement engine for equipment that requires a keyed, 1" horizontal shaft.
