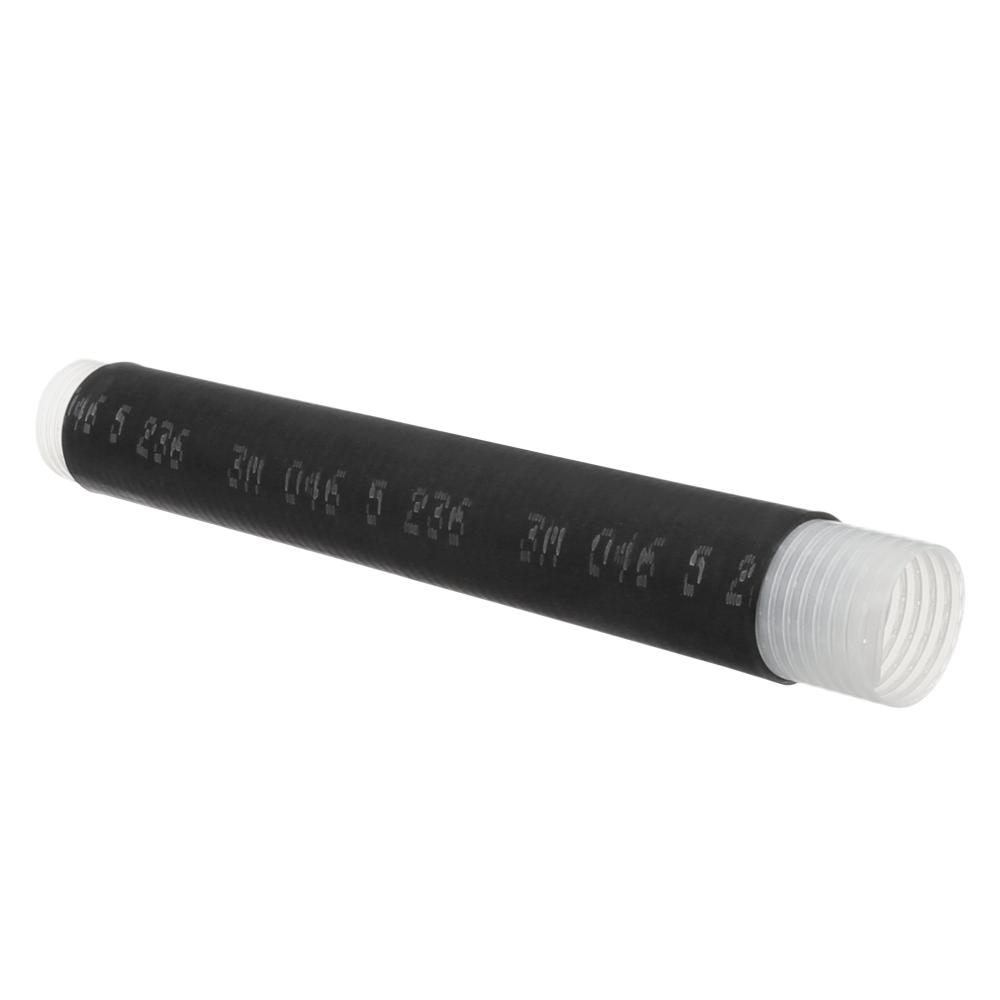

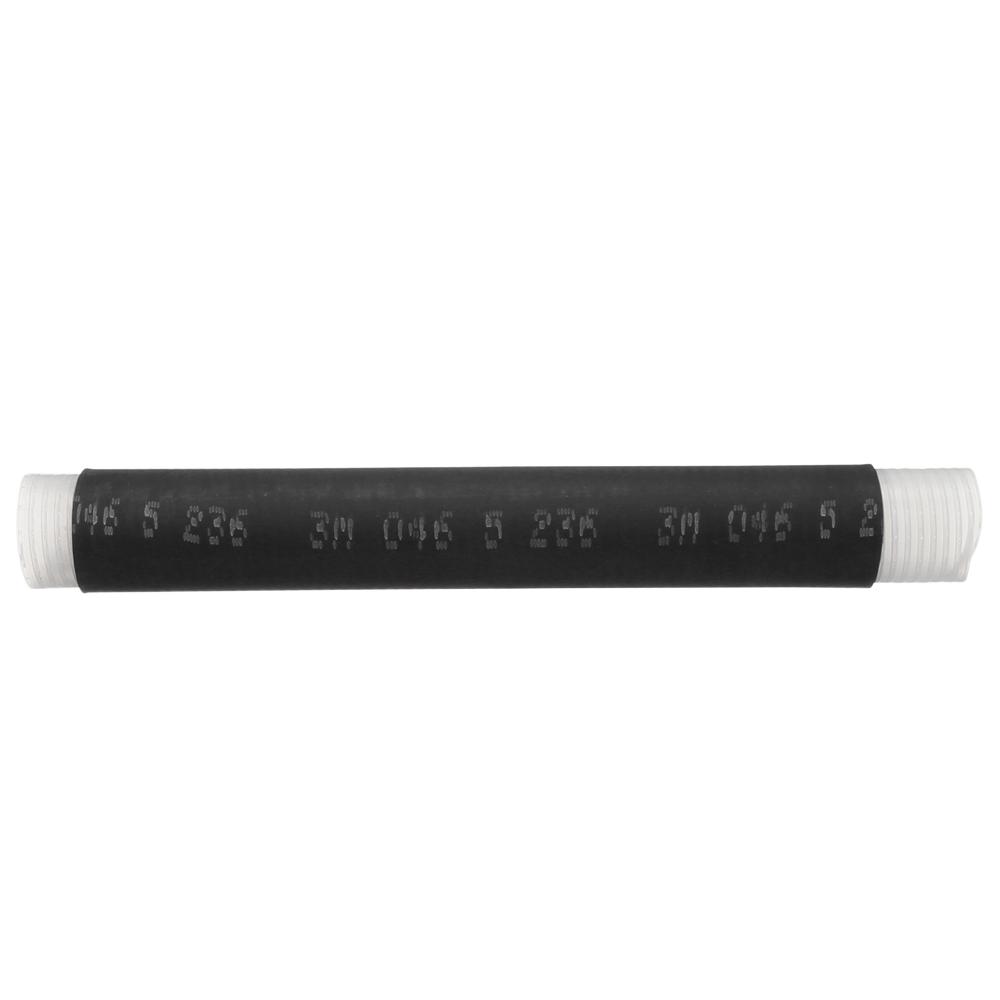

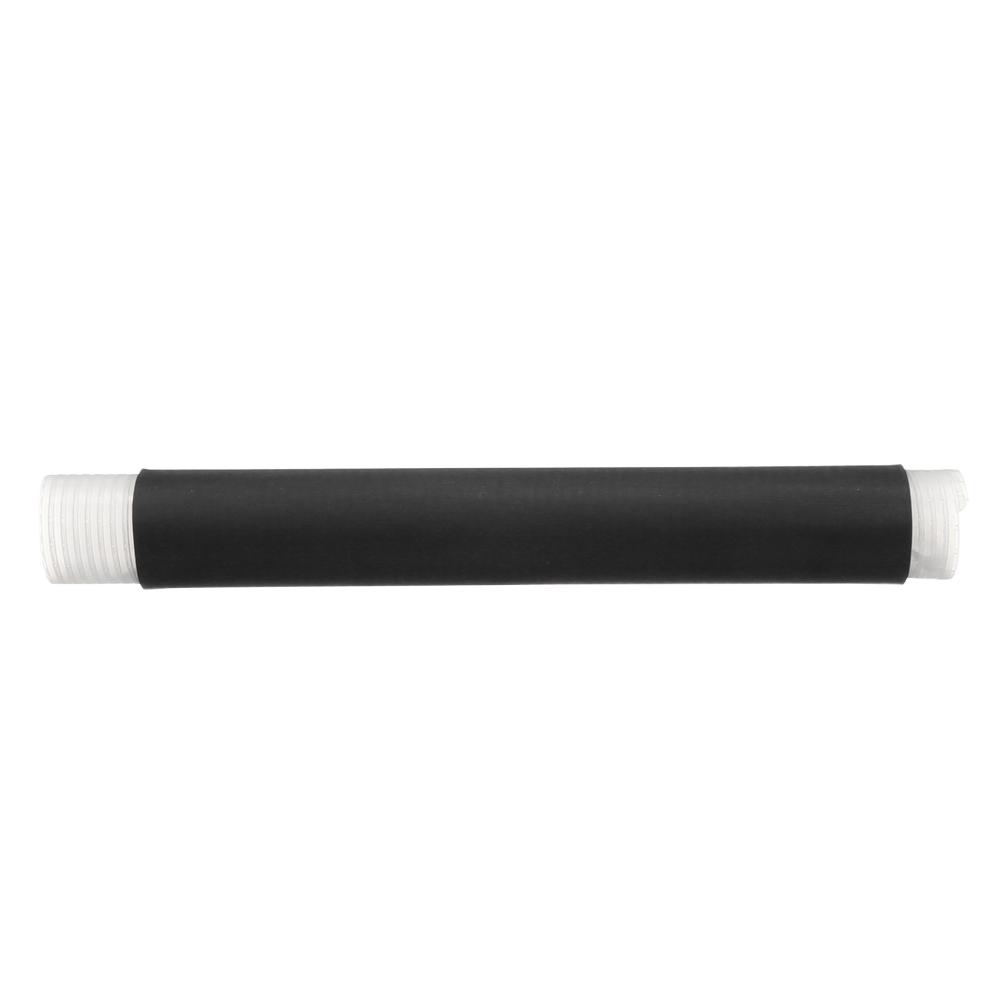

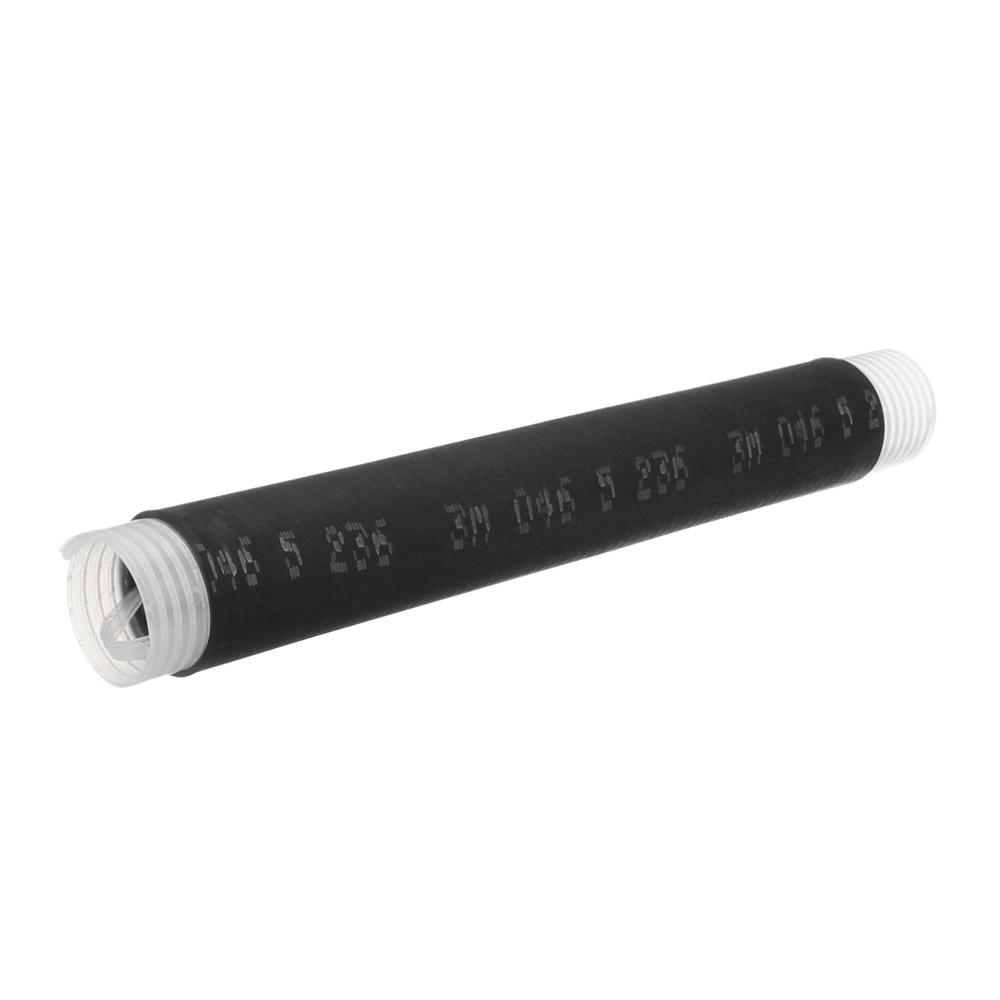

3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.3M Cold Shrink Insulators are designed using a unique cold shrink delivery system. They are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core after positioning allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.
Details
Application:
Insulation, mechanical protection, repair
Cable Type:
Non-Shieled, Solid Dielectric Power Cable
Inner Diameter After Shrink (Imperial):
Inner Diameter After Shrink (Metric):
Inner Diameter Before Shrink (Imperial):
Inner Diameter Before Shrink (Metric):
Maximum Connector Length:
Maximum Connector Length (Metric):
Maximum Operating Temperature (Celsius):
Maximum Operating Temperature (Fahrenheit):
Minimum Operating Temperature (Celsius):
Minimum Operating Temperature (Fahrenheit):
Overall Length (Imperial):
Relaxed Tube Length (Metric):
RoHS EU Comments:
RoHS 2011/65/EU compliant without exemption
Other Details
Accommodates a wide range of cable sizes
No mastic or tape required to seal
no special tools and no heat required
Quick and easy installation
retains resiliency and pressure
